Humidified High Flow Nasal Cannula Therapy

Disclaimer

These guidelines have been produced to guide clinical decision making for the medical, nursing and allied health staff of Perth Children’s Hospital. They are not strict protocols, and they do not replace the judgement of a senior clinician. Clinical common-sense should be applied at all times. These clinical guidelines should never be relied on as a substitute for proper assessment with respect to the particular circumstances of each case and the needs of each patient. Clinicians should also consider the local skill level available and their local area policies before following any guideline.

Read the full PCH Emergency Department disclaimer.

Aim

This guideline describes the indications, management and procedure for the use of Humidified High Flow Nasal Cannula therapy (HHFNC) at PMH / PCH.

Definition

HHFNC: Humidified High Flow Nasal Cannula therapy is the delivery of heated humidified air and / or oxygen via nasal prongs at a flow rate of 2L/kg/min for children up to 25kg. Maximum flows for children above 25kg are titrated according to age and weight (see Flow Rate table below).

Background

HHFNC is a mode of non-invasive respiratory support for children with acute respiratory distress. The physiological effects of HHFNC are thought to include:
  • Improved pulmonary compliance and decrease work of breathing with high gas flows which aids pharyngeal dead space washout and decreased nasopharyngeal resistance.
  • Improved gas exchange and ventilation by assisting the opening of distal airways and alveoli.
  • Reduced mucosal resistance and increased tolerance to therapy through delivery of warmed humidified air / oxygen.
Note: Children who are palliative or have chronic respiratory conditions may have management plans that differ from these guidelines. Refer to individual medical management plan for these patients.

Risk

Inappropriate use of HHFNC therapy and inadequate monitoring, management and equipment use can compromise patient safety and result in serious adverse outcomes.

Key Points

  • HHFNC requires a medical order and should only be initiated by clinicians with knowledge and experience in its use.
  • The decision to commence HHFNC must be made in consultation with the child’s treating Consultant.
  • The Hospital Clinical Manager (HCM) and ward nursing team must be consulted prior to ward allocation to ensure nursing staff with appropriate knowledge and skills are available to provide safe care.
  • Outside normal business hours, the STARs team should also be notified of HHFNC therapy initiation.
  • The medical order must be documented in the patient medical record and include parameters for:
    • Gas flow rate
    • Fraction of Inspired Oxygen(FiO2)
    • Target oxygen saturation (SpO2)
      • If modifications are required this must be documented on the CEWT chart by the treating Consultant or delegate and reviewed daily.
  • The medical team / STARs team (after-hours) must review the patient within 2 hours of initiating HHFNC therapy.
  • PCC consult  / review should be sought for any patient who:
    • Has severe respiratory distress and / or are rapidly deteriorating
    • Is requiring  FiO2 ≥ 50% oxygen to maintain SpO2 > 92%
    • Does not exhibit signs of achieving clinical goals within 2 hours of commencement of HHFNC therapy.
  • All patients commenced on HHFNC require continuous pulse-oximetry and hourly respiratory observations at a minimum.

Indications for HHFNC

  • Acute respiratory distress from bronchiolitis: consider use if hypoxaemia and moderate to severe respiratory distress despite standard flow oxygen via nasal prongs or Hudson oxygen mask.
  • Acute respiratory failure: In addition to bronchiolitis, HHFNC may be considered in infants and children with acute respiratory failure from other causes; however there is currently little data to make evidence based recommendations for its use in conditions other than bronchiolitis.
  • Weaning therapy from mask non-invasive ventilation, or bubble CPAP in neonates / infants.

Contraindications

  • Blocked nasal airway e.g. choanal atresia
  • Trauma or surgery to nasopharynx
  • Pneumothorax
  • Base of skull fractures.

Precautions

  • The widespread usage of HHFNC has occurred in the absence of a strong evidence base. This therapy should be used with caution and with an awareness of potential side effects.
  • Flows >2 L/min may cause unpredictable positive end expiratory pressure (PEEP) and should be used with caution in neonates.

Complications

  • Gastric distension
  • Pressure injury / mucosal injury
  • Blocked nasal cannula due to secretions
  • Air leak resulting in pneumothorax and  / or pneumomediastinum.

Equipment required for delivering HHFNC

Nasal Cannula:

  • Optiflow® Junior 2 for neonates, infants and children up to 12kg and flows 2- 25L/min.
  • Optiflow® nasal cannula for flows greater than 25L/min, up to maximum of 60L/min.
  • Nasal cannula should not fill more than 50% of the patients’ nostrils – under no circumstances should they create a seal or occlude more than 80% of the nostrils.

Humidifier: F&P MR850 Humidifier and blender system:

Commencing HHFNC Therapy

  • Capillary blood gases are not routinely required but may be considered at commencement and after two hours of treatment.
  • Nasogastric tubes do not need to be inserted routinely but may be considered for gastric decompression in:
    • Infants and children less than 3 years prior to initiation and for the duration of therapy. NG tube should be aspirated 4 hourly for air.
    • Children > 3 years - if distension is an issue whilst on HHFNC therapy or child is not responding to treatment.
  • Flow rate: Recommended as follows:
Recommended flow rate
 Child's weight  Recommended flow rate  Max flow rate  Circuit required
 0-12 kg  2 L/kg/min  Max 25 L/min  Paediatric circuit
 13-15 kg  2 L/kg/min*  Max 30 L/min  Adult circuit
 16-30 kg
 35 L/kg/min*
 Max 40 L/min
 Adult circuit
 31-50 kg
 40 L/kg/min*
 Max 50 L/min
 Adult circuit
 > 50 kg  50 L/kg/min*
 Max 50 L/min
 Adult circuit

* To improve tolerance, increase flow to this rate over 2 minutes.

Patient monitoring and documentation

  • Continuous pulse oximetry for the duration of therapy.Consider cardiorespiratory / apnoea monitoring if patient has increased risk factors and / or severe respiratory distress on medical direction.
  • Hourly vital signs (at a minimum) recorded on CEWT chart:
    • Respiratory rate
    • Respiratory effort
    • Heart rate
    • SpO2

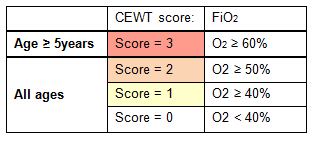

    • FiO2 as per table:

CEWT score chart










  • Temperature 4 hourly and PRN
  • Perform hourly system checks of the following and record on Ventilation Chart MR824.04:
    • Gas flow rate
    • Humidifier temperature
    • Water level in humidifier chamber
    • Circuit tubing and nasal cannula for signs of blockage / condensation
    • Skin integrity at nares
    • Abdominal distension: aspirate NG tube, if in situ, 4 hourly or as clinically indicated.
  • Gentle nasal suctioning as required
  • The patient must have a medical review by primary team or STARS team within two hours of initiating therapy.

Feeding

  • The decision to feed should be based on the severity of respiratory distress rather than the need for HHFNC.
  • If stable/improved / respiratory effort/ work of breathing within normal limits  after two hours on HHFNC assess child / infant’s ability to feed orally or via NG tube.
  • If the child / infant remains unstable or too unwell to tolerate oral intake consider continuous NG feeds or IV hydration after medical review.
  • Consider reducing flow to 1L/kg/min during oral or bolus NG feeding.

Inhaled medications

  • Delivery of inhaled medications to the lungs is significantly reduced whilst nasal cannula and therapy in progress, therefore HHFNC should be temporarily ceased for administration of nebulisers or MDI inhalers.
  • There is insufficient evidence to recommend the administration of nebulised medication via the HHFNC circuit and is not recommended.

Escalation

If there is no clinical improvement within two hours of commencing HHFNC4, 5 further escalation of treatment may be required.

Initiate earlier medical review and PCC consult if there is:

  • No response to treatment as evidenced by no improvement in work of breathing and persistently high FiO2 requirement
  • Persisting hypoxaemia despite high FiO2 and gas flow
  • Increasing respiratory distress
  • Frequent apnoea or bradycardia
  • A rapid deterioration of SpO2 or marked increase in work of breathing (need to exclude pneumothorax)
  • Increasing CEWT scores

Transferring patients

Caution: Ceasing HHFNC for transfer, places the patient at risk for clinical deterioration during the transfer.

  • HHFNC must not be ceased during procedures (e.g. medical imaging) without prior consultation with the treating consultant and a medical officer in attendance.
  • A Registered Nurse must accompany patients between clinical areas. The need for a medical escort will be determined by the treating physician according to patient’s clinical status and ventilation requirements during transfer.
  • Patient must remain fully monitored.
  • High flows without humidification are usually tolerated for short periods. Where possible, transfer patient with equipment in situ (minus the blender), with humidifier connected to portable oxygen. Please refer to the equipment set up procedure.
    • Consider reducing the oxygen flow to 1L/kg/min up to a maximum of 30L/min during transfer.
    • A spare oxygen cylinder (> 75% full) will be required for the transfer.
  • Ensure the receiving ward has all the required equipment ready for use immediately upon arrival
  • A full ISOBAR clinical handover must be provided when transferring patients between clinical areas in accordance with PMH Clinical Handover policies (internal HealthPoint link) and procedures.
  • Refer also to the Intrahospital (internal HealthPoint link) and Interhospital transfer policies (internal HealthPoint link).

Weaning HHFNC

As patients improve, their oxygen requirement decreases. Oxygen is potentially harmful, especially if the inspired concentration is inappropriately high. Oxygen is not a treatment for increased work of breathing. Every effort should be made to adjust to the lowest possible FiO2 to achieve target oxygen saturations.
  • It is not necessary to wean flow rate
  • With every set of observations, attempt to wean FiO2 as follows:
  1. If SpO2 ≥ 92% decrease FiO2 by 10 percent and observe closely for 10 mins to ensure SpO2 remains ≥92%.
  2. If SpO2 falls below 92% return to previous FiO2.
  3. With the following set of hourly observations, attempt further wean and reassess.
  4. Once the patient has been stable in FiO2 of 21% for one hour i.e. no respiratory distress / CEWT score <4, discontinue HHFNC.
  5. Observe for 30 mins, if work of breathing increases significantly or SpO2 falls below 92%, consult with patient’s medical team or STARS registrar to decide on further action (re-initiation of HHFNC versus low flow nasal prong oxygen).

Bibliography

  1. Hutchings FA, Hilliard TN, Davis PJ. Heated humidified high-flow nasal cannula therapy in children. Archives of Disease in Childhood. 2015;100(6):571-5.
  2. Lee JH, Rehder KJ, Williford L, Cheifetz IM, Turner DA. Use of high flow nasal cannula in critically ill infants, children, and adults: a critical review of the literature. Intensive Care Medicine. 2013 February 01;39(2):247-57.
  3. McKiernan C, Chua LC, Visintainer PF, Allen H. High flow nasal cannulae therapy in infants with bronchiolitis. J Pediatr. 2010 Apr;156(4):634-8. PubMed PMID: 20036376. Epub 2009/12/29. eng.
  4. Abboud PA, Roth PJ, Skiles CL, Stolfi A, Rowin ME. Predictors of failure in infants with viral bronchiolitis treated with high-flow, high-humidity nasal cannula therapy*. Pediatric critical care medicine : a journal of the Society of Critical Care Medicine and the World Federation of Pediatric Intensive and Critical Care Societies. 2012 Nov;13(6):e343-9. PubMed PMID: 22805160. Epub 2012/07/19. eng.
  5. Schibler A, Pham TM, Dunster KR, Foster K, Barlow A, Gibbons K, et al. Reduced intubation rates for infants after introduction of high-flow nasal prong oxygen delivery. Intensive Care Med. 2011 May;37(5):847-52. PubMed PMID: 21369809. Epub 2011/03/04. eng.
  6. Kepreotes E, Whitehead B, Attia J, Oldmeadow C, Collison A, Searles A, et al. High-flow warm humidified oxygen versus standard low-flow nasal cannula oxygen for moderate bronchiolitis (HFWHO RCT): an open, phase 4, randomised controlled trial. The Lancet. //;389(10072):930-9.
  7. Betters KA, Gillespie SE, Miller J, Kotzbauer D, Hebbar KB. High flow nasal cannula use outside of the ICU; factors associated with failure. Pediatric Pulmonology. 2017;52(6):806-12.
  8. Beggs S, Wong ZH, Kaul S, Ogden KJ, Walters JAE. High-flow nasal cannula therapy for infants with bronchiolitis. Cochrane Database of Systematic Reviews. 2014 (1). PubMed PMID: CD009609.
  9. 9. Mayfield S, Jauncey-Cooke J, Hough JL, Schibler A, Gibbons K, Bogossian F. High-flow nasal cannula therapy for respiratory support in children. Cochrane Database Syst Rev. 2014 Mar 07(3):Cd009850. PubMed PMID: 24604698. Epub 2014/03/08. eng.
  10. Spence KL, Murphy D, Kilian C, McGonigle R, Kilani RA. High-flow nasal cannula as a device to provide continuous positive airway pressure in infants. Journal of perinatology : official journal of the California Perinatal Association. 2007 Dec;27(12):772-5. PubMed PMID: 17762844. Epub 2007/09/01. eng.
  11. Kubicka J, Limauro J, & Darnall A, . Heated Humidified High-Flow Nasal Cannula Therapy: Yet Another way to Delivery Continuous Positive Airway Pressure? Pediatrics. 2008.;121(1):82-8.
  12. de Klerk A, . Humidified High-Flow Nasal cannula: Is It the New and Improved CPAP? Advances in Neonatal Care. 2008;8(2):98-106.
  13. Hegde S, Prodhan P. Serious air leak syndrome complicating high-flow nasal cannula therapy: a report of 3 cases. Pediatrics. 2013 Mar;131(3):e939-44. PubMed PMID: 23382446. Epub 2013/02/06. eng.
  14. Lady Cilento Children’s Hospital. Guideline. High Flow Nasal Cannula Therapy. Management of the paediatric patient receiving high flow therapy. 2016

Approved by:  PCH Clinical Practice Advisory Committee
Date:  7 Feb 2018
Endorsed by:  Director Clinical Services
Date:  8 Feb 2018


Review date:   Feb 2018
